EOS Invisio Midi 208/3 Sauna Heater
Authorized Dealer - Full Warranty Included
Concealed installation under the benches
Robust zinc-plated steel shell construction with stainless steel top, cover, and adjustable feet
Water infusion feature
Safety grill reliably protects against objects falling down on the heater
Special positioning of heating elements optimizes performance for quicker heat-up times
Designed, engineered and built in Germany
Compatible with Touch 3 & Emotec D controls (Sold Separately)
Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
No VAT or other hidden charges added at checkout.
Full Description

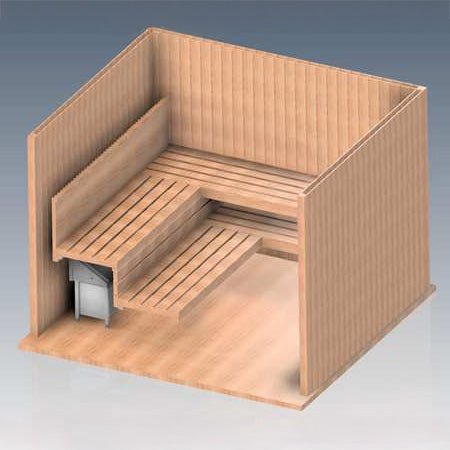

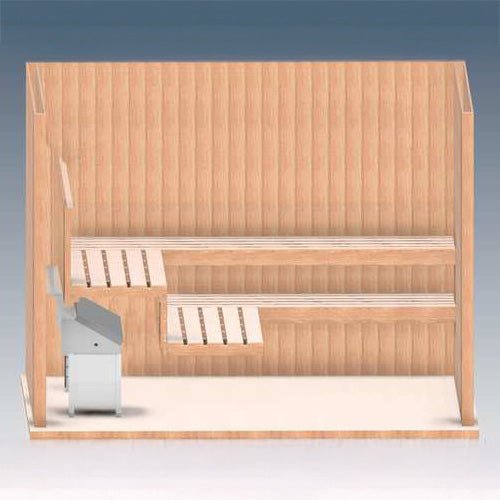

Hidden under the sauna bench completely out of site, the EOS Invisio Midi electric sauna heater boasts excellent performance, high safety standards, and maximizes the space inside your sauna.
Constructed from a zinc-plated steel shell with stainless-steel top, cover, and feet, the Invisio Midi's intelligent design offers many user benefits. The heating elements are configured to provide fast heat-up times so you can swiftly enjoy a luxurious sauna session. Its low-profile design allows installation beneath sauna benches, saving valuable space with only a 4-inch gap to the wall needed. Bathers can relax without risk of coming in contact with a hot sauna heater.
Water splashes for a steamy sauna are still possible using the cleverly engineered water infusion feature. Simply pour water into the stainless-steel funnel connected to the heater, and the system will distribute the water across the width of the heater to create luxurious steam.
Protected by a 2-year warranty, the Invisio Midi's concealed installation and operation is ideal for wellness enthusiasts who desire powerful sauna experience within a minimalist, spacious interior.
Features
- Concealed installation under the benches for high user safety and a spacious sauna interior.
- Robust zinc-plated steel shell construction with stainless steel top, cover, and adjustable feet.
- Water infusion feature still allows water splashes through a steel funnel to generate steam.
- Safety grill reliably protects against objects falling down on the heater.
- Special positioning of heating elements optimizes performance for quicker heat-up times.
- Designed, engineered and built in Germany.
- Compatible with Touch 3 & Emotec D controls (Sold Separately)
- Dimensions: 45.7"W (116 cm) x 15"D (38 cm) x 30.3"H (77 cm)
- Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
Includes
- Invisio Midi Electric Sauna Heater
- 4 Adjustable Legs
- Trough with Connection Hose
- Protective Grill
- Stainless Steel Angled Tube
- Mounting Material and Warning Plate
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)
Specifications
|
Model |
14-947543 / 14-947997 |
|
Room Size |
213-280 cu. ft. |
|
Wattage Rating |
6000 |
|
Weight |
53 lbs (24 kg) |
|
Amperage |
25 |
|
Model |
14-947544 / 14-947998 |
|
Room Size |
313-494 cu. ft. |
|
Wattage Rating |
9000 |
|
Amperage |
35 |
|
Weight |
55 lbs (25 kg) |
|
Model |
14-947545 / 14-947999 |
|
Room Size |
494-634 cu. ft. |
|
Wattage Rating |
12000 |
|
Amperage |
25 |
|
Weight |
60 lbs (27 kg) |
|
Model |
INVISIO MIDI 208/3 |
|
Room Size |
213-634 cu. ft. |
|
Voltage |
208 |
|
Phase |
3 |
|
Circuit Breaker |
See Installation and Operation Manual |
|
Wire Size AWG |
12 |
|
Safety Listing |
CSA (Canadian Standards Association) |
|
Minimum Ceiling Height |
74.8" (190 cm) |
|
Safety Distance (Front to Back) |
15.4" (39 cm) |
|
Safety Distance (Left to Right) |
50.4" (128 cm) |
|
Stone Capacity |
44 lbs (20 kg) |
|
Stone Size |
2" to 4" (5-10 cm) |
|
Width |
45.7" (116 cm) |
|
Depth |
15" (38 cm) |
|
Height |
30.3" (77 cm) |
|
Minimum Bench Height |
63" (160 cm) |
Manuals
Concealed Design, Built to Last
Installed beneath the sauna bench with only a 4-inch gap to the wall needed, the Invisio Midi keeps the heater hidden while maximizing usable space and removing any risk of contact during a session. A clever water infusion funnel still lets bathers pour water for steam, distributing it evenly across the heater, while a protective safety grill guards against falling objects. It's all backed by a 2-year limited warranty for consumer and commercial use.
German-Engineered Performance
The Invisio Midi is designed, engineered, and built in Germany, with heating elements specially positioned for fast heat-up times and a robust zinc-plated steel shell paired with stainless steel top, cover, and adjustable feet. It's built to deliver a powerful, reliable sauna session while staying completely out of sight.
