EOS Gracil W Sauna Heater
Authorized Dealer - Full Warranty Included
Slim wall-mounted design ideal for small saunas
Steel construction throughout
Elegant stainless-steel protective stone cover
Removable dust and debris collecting tray
Designed, engineered and built in Germany
Compatible with Touch 3 & Emotec D controls (Sold Separately)
Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
No VAT or other hidden charges added at checkout.
Full Description

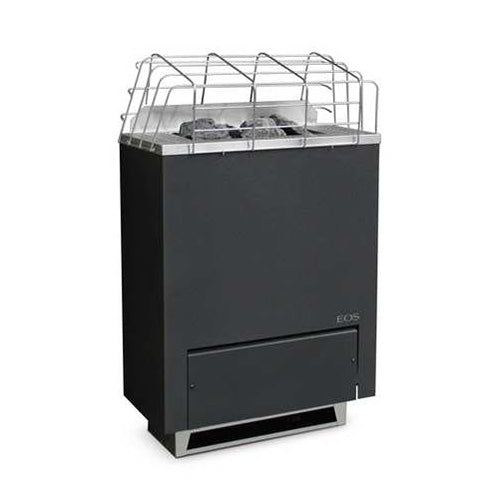

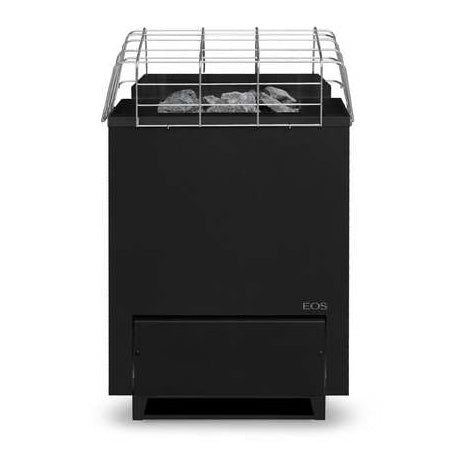

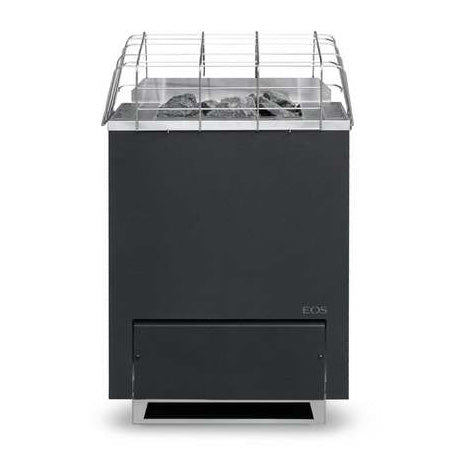

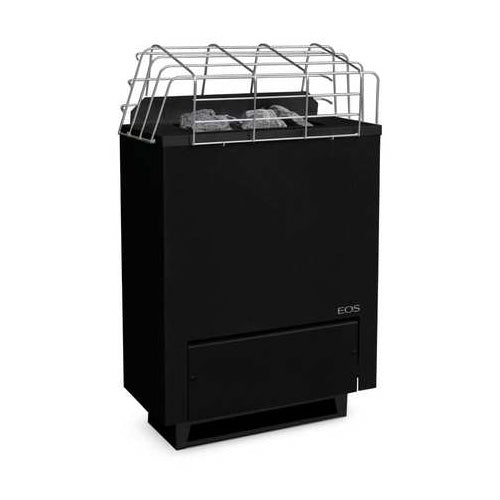

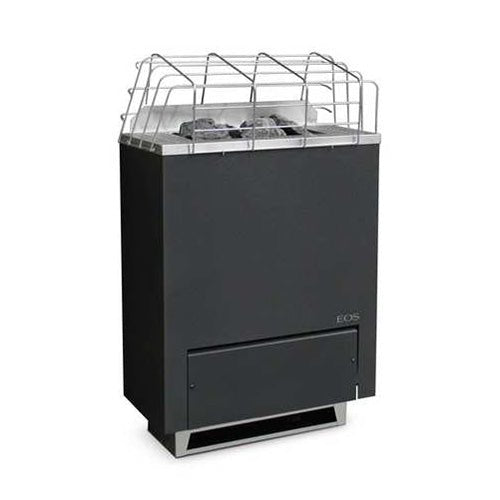

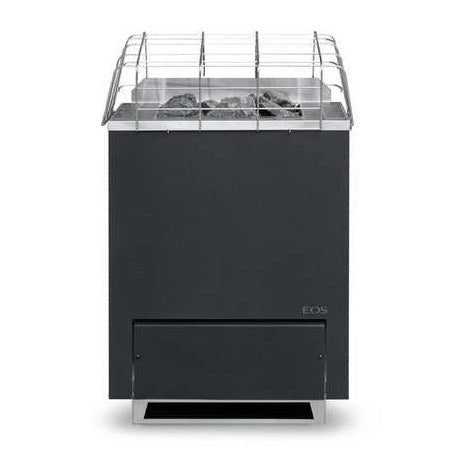

The EOS Gracil W electric sauna heater combines refined elegance with efficient performance ideal for the optimal wellness experience.
The wall-mounted Gracil hosts a slim profile that will add a contemporary flair to perfectly compliment sauna environments. The heater is designed with a flat back and a flush-mounted terminal box, well-suited for placement in front of glass or in tight spaces that require small safety distances.

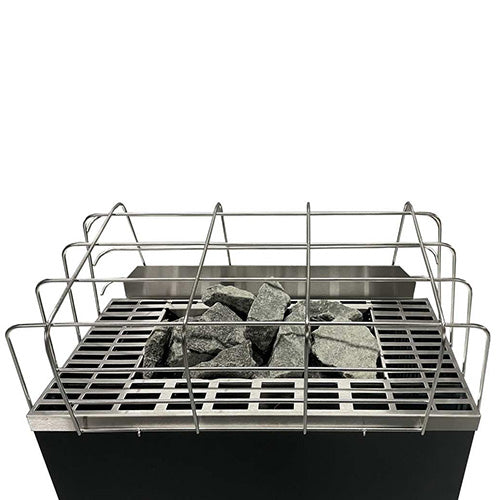

Constructed from durable stainless steel, the inner shell of the Gracil can hold 44 lbs store of sauna stones despite its shallow dimensions. Above the heater, a protective brushed stainless-steel cover acts as a safety barrier during sauna sessions. Below the heater, a collecting tray accumulates dust and debris from sauna sessions can be emptied afterwards.
Protected by a 2-year warranty, the Gracil W impresses with its artistic, space-saving design and reliable heat distribution making it perfect for private sauna escapes.
Features
- Slim wall-mounted design ideal for small saunas where extra space is welcome.
- Steel construction throughout with an elegant stainless-steel protective stone cover.
- Sleek, straight lined body panels with flush-mounted terminal box for flexible heater placement.
- Dust and debris collecting tray located on the bottom to keep the sauna clean.
- Designed, engineered and built in Germany.
- Compatible with Touch 3 & Emotec D controls (Sold Separately)
- Dimensions: 19.9"W (50.5 cm) x 9.8"D (25 cm) x 29.9"H (76 cm)
- Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
Includes
- Gracil W Electric Sauna Heater
- Diabase Sauna Stones
- Protective Grill
- 4 Particle Board Screws 5 x 35 mm
- Wall Bracket
- Lock Screw
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)
Specifications
|
Model |
14-947537 / 14-947991 |
|
Room Size |
213-300 cu. ft. |
|
Wattage Rating |
6000 |
|
Voltage |
208 |
|
Phase |
3 |
|
Amperage |
20 |
|
Wire Size AWG |
12 |
|
Weight |
45.2 lbs (20.5 kg) |
|
Model |
14-947540 / 14-947994 |
|
Room Size |
213-300 cu. ft. |
|
Wattage Rating |
6000 |
|
Voltage |
240 |
|
Phase |
2 |
|
Amperage |
35 |
|
Wire Size AWG |
10 |
|
Weight |
45.2 lbs (20.5 kg) |
|
Model |
14-947538 / 14-947992 |
|
Room Size |
280-420 cu. ft. |
|
Wattage Rating |
7500 |
|
Voltage |
208 |
|
Phase |
3 |
|
Amperage |
25 |
|
Wire Size AWG |
12 |
|
Weight |
46.3 lbs (21 kg) |
|
Model |
14-947541 / 14-947995 |
|
Room Size |
280-420 cu. ft. |
|
Wattage Rating |
7500 |
|
Voltage |
240 |
|
Phase |
2 |
|
Amperage |
40 |
|
Wire Size AWG |
10 |
|
Weight |
46.3 lbs (21 kg) |
|
Model |
14-947539 / 14-947993 |
|
Room Size |
313-494 cu. ft. |
|
Wattage Rating |
9000 |
|
Voltage |
208 |
|
Phase |
3 |
|
Amperage |
35 |
|
Wire Size AWG |
10 |
|
Weight |
47.4 lbs (21.5 kg) |
|
Model |
14-947542 / 14-947996 |
|
Room Size |
313-494 cu. ft. |
|
Wattage Rating |
9000 |
|
Voltage |
240 |
|
Phase |
2 |
|
Amperage |
50 |
|
Wire Size AWG |
8 |
|
Weight |
47.4 lbs (21.5 kg) |
|
Model |
GRACIL W |
|
Room Size |
213-494 cu. ft. |
|
Circuit Breaker |
See Installation and Operation Manual |
|
Safety Listing |
CSA (Canadian Standards Association) |
|
Minimum Ceiling Height |
74.8" (190 cm) |
|
Safety Distance (Front to Back) |
13.2" (33.5 cm) |
|
Safety Distance (Left to Right) |
24.6" (62.5 cm) |
|
Stone Capacity |
44 lbs (20 kg) |
|
Stone Size |
2" to 4" (5-10 cm) |
|
Width |
19.9" (50.5 cm) |
|
Depth |
10.8" (27.5 cm) |
|
Height |
29.1" (74 cm) |
Manuals
Slim Design, Built to Last
A slim, wall-mounted profile with a flat back and flush-mounted terminal box lets the Gracil W fit into tight spaces or in front of glass, where smaller safety distances are needed — ideal for compact sauna rooms. A brushed stainless-steel cover acts as a safety barrier above the heater, while a removable tray below collects dust and debris to keep the cabin spotless. It's all backed by a 2-year limited warranty for consumer and commercial use.
German-Engineered Performance
The Gracil W is designed, engineered, and built in Germany, with a durable stainless steel inner shell that holds up to 44 lbs of sauna stones despite its shallow depth. Reliable heat distribution and efficient performance make it a natural fit for private sauna sessions.
