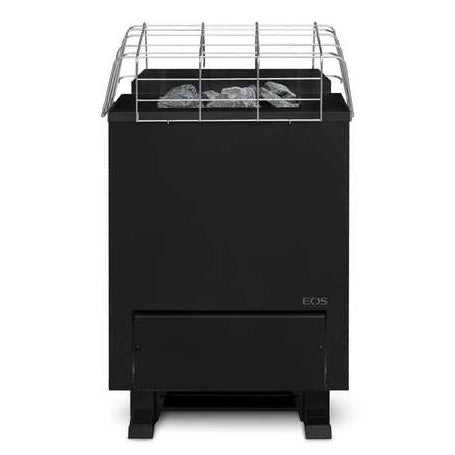

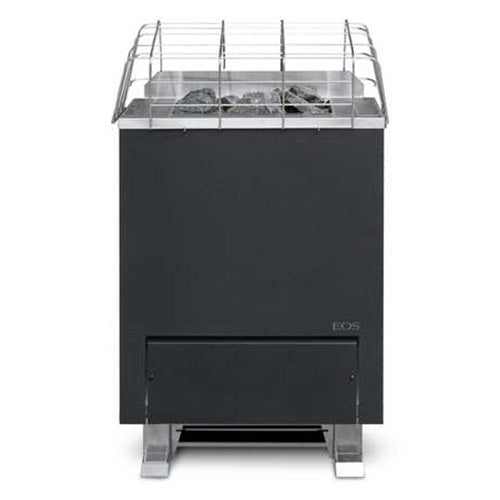

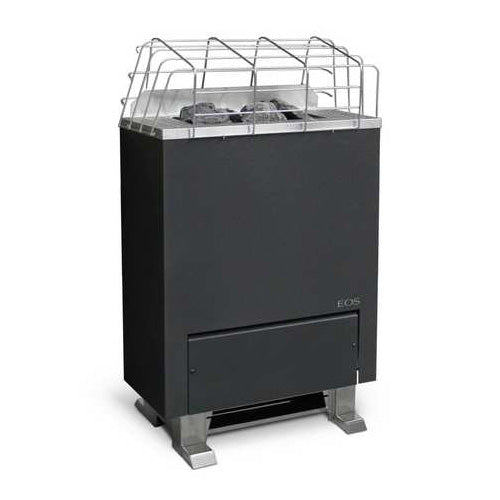

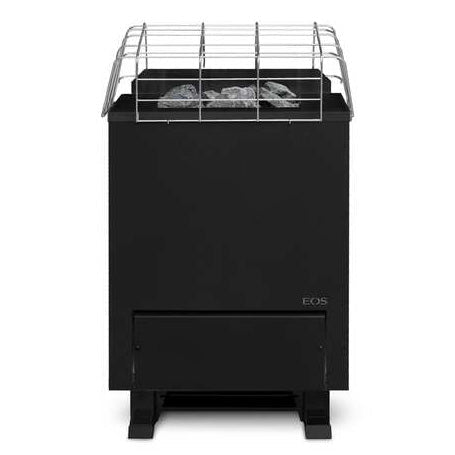

EOS Gracil Sauna Heater
Authorized Dealer - Full Warranty Included
Slim freestanding design ideal for small saunas
Steel construction throughout
Elegant stainless-steel protective stone cover
Removable dust and debris collecting tray
Designed, engineered and built in Germany
Compatible with Touch 3 & Emotec D controls (Sold Separately)
Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
No VAT or other hidden charges added at checkout.
Full Description
The EOS Gracil electric sauna heater combines refined elegance with efficient performance, ideal for optimal enjoyment and an exceptional sauna experience.
The freestanding Gracil features a modern slim, geometric profile that will add a contemporary flair to your sauna environment. It is designed with a flat back and a flush-mounted terminal box, so the heater can be placed in front of glass or in tight spaces that require small safety distances.

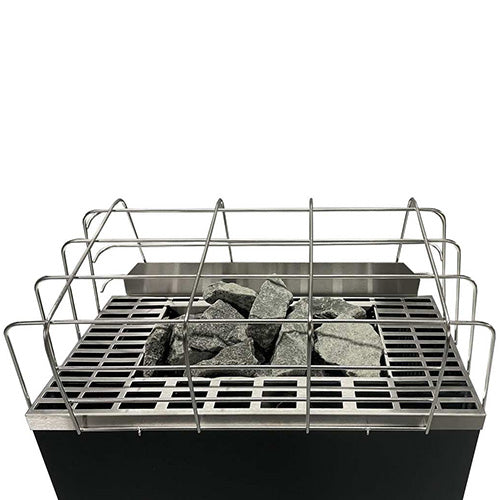

Constructed from durable stainless steel, the inner shell of the Gracil contains 44 lbs of sauna stones despite its shallow dimensions. Above the heater a brushed stainless-steel cover acts as a safety barrier during sauna sessions, with a collecting tray below accumulating dust and debris to keep your cabin spotless.
Supported by a 2-year warranty, the Gracil impresses with its artistic space-saving design and reliable heat distribution making it perfect for private sauna escapes.
Features
- Slim freestanding design ideal for small saunas where extra space is welcome.
- Steel construction throughout with an elegant stainless-steel protective stone cover.
- Sleek, straight lined body panels with flush-mounted terminal box for flexible heater placement.
- Removable dust and debris collecting tray located below the heater to keep the sauna clean.
- Designed, engineered and built in Germany.
- Compatible with Touch 3 & Emotec D controls (Sold Separately)
- Dimensions: 19.9"W (50.5 cm) x 9.8"D (25 cm) x 29.9"H (76 cm)
- Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
Includes
- Gracil Electric Sauna Heater
- Diabase Sauna Stones
- Protective Grill
- 2 Mounting Brackets
- 4 Particle Board Screws 5 x 35mm
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)
Specifications
Model |
14-947531 / 14-947985 |
Room Size |
213-300 cu. ft. |
Wattage Rating |
6000 |
Voltage |
208 |
Phase |
3 |
Amperage |
20 |
Wire Size AWG |
12 |
Weight |
45.2 lbs (20.5 kg) |
Model |
14-947534 / 14-947988 |
Room Size |
213-300 cu. ft. |
Wattage Rating |
6000 |
Voltage |
240 |
Phase |
2 |
Amperage |
35 |
Wire Size AWG |
10 |
Weight |
45.2 lbs (20.5 kg) |
Model |
14-947532 / 14-947986 |
Room Size |
280-420 cu. ft. |
Wattage Rating |
7500 |
Voltage |
208 |
Phase |
3 |
Amperage |
25 |
Wire Size AWG |
12 |
Weight |
46.3 lbs (21 kg) |
Model |
14-947535 / 14-947989 |
Room Size |
280-420 cu. ft. |
Wattage Rating |
7500 |
Voltage |
240 |
Phase |
2 |
Amperage |
40 |
Wire Size AWG |
10 |
Weight |
46.3 lbs (21 kg) |
Model |
14-947533 / 14-947987 |
Room Size |
313-494 cu. ft. |
Wattage Rating |
9000 |
Voltage |
208 |
Phase |
3 |
Amperage |
35 |
Wire Size AWG |
10 |
Weight |
47.4 lbs (21.5 kg) |
Model |
14-947536 / 14-947990 |
Room Size |
313-494 cu. ft. |
Wattage Rating |
9000 |
Voltage |
240 |
Phase |
2 |
Amperage |
50 |
Wire Size AWG |
8 |
Weight |
47.4 lbs (21.5 kg) |
Model |
GRACIL |
Room Size |
213-494 cu. ft. |
Depth |
9.8" (25 cm) |
Height |
29.9" (76 cm) |
Width |
19.9" (50.5 cm) |
Stone Size |
2" to 4" (5-10 cm) |
Circuit Breaker |
See Installation and Operation Manual |
Stone Capacity |
33 lbs (15 kg) |
Safety Listing |
CSA (Canadian Standards Association) |
Minimum Ceiling Height |
74.8" (190 cm) |
Safety Distance (Front to Back) |
14.6" (37 cm) |
Safety Distance (Left to Right) |
24.6" (62.5 cm) |
Slim Design, Built to Last
A slim, geometric freestanding profile with a flat back and flush-mounted terminal box lets the Gracil fit into tight spaces or in front of glass, where smaller safety distances are needed — ideal for compact sauna rooms. A brushed stainless-steel cover acts as a safety barrier above the heater, while a removable tray below collects dust and debris to keep the cabin spotless. It's all backed by a 2-year limited warranty for consumer and commercial use.
German-Engineered Performance
The Gracil is designed, engineered, and built in Germany, with a durable stainless steel inner shell that holds up to 44 lbs of sauna stones despite its shallow depth. Reliable heat distribution and efficient performance make it a natural fit for private sauna sessions.
