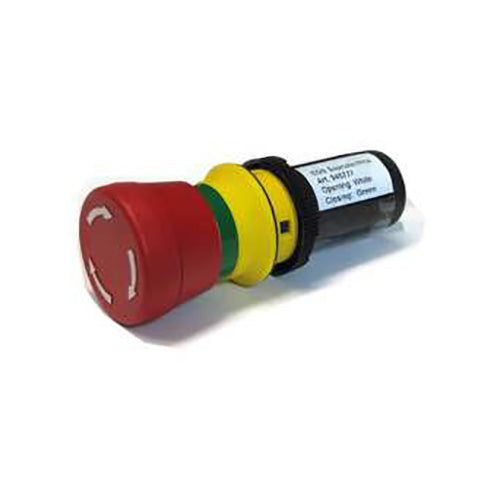

EOS Emergency Shutoff
Bright, clearly marked button for high visibility
Single-press failsafe functionality
Two separate switching circuits
Compatibility with third party signaling equipment
Optional maple wood cover plate
Designed, engineered and built in Germany
Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
No sales tax or other hidden charges added at checkout.
Full Description
Add peace of mind to your sauna cabin with the EOS Emergency Shutoff, a munt-have safety accessory designed to instantly cut heater power with a single press.
Featuring a clearly marked red button for fast identification, the control connects to the heater via the overheating safety circuit for instant shutoff. The two separate switching circuits allow two separate actions to be carried out if users desire to connect an alarm for additional safety. In case of accidental operation, rotating the button clockwise to its normal standby position within 5 minutes will resume heater operation. Afterwards, a manual restart will be required.
Supported by a 2-year warranty, the EOS Emergency Shutoff is built with reliable EOS quality to help prevent accidents and ensure fast a fast response when every second counts.
Features
- Bright, clearly marked button for high visibility in steamy or dimly lit sauna conditions.
- Single-press failsafe functionality with dependable EOS quality adding peace of mind to sauna sessions.
- Two separate switching circuits with additional compatibility with third party signaling equipment.
- Optional maple wood cover plate and installation kit for convenient essential parts with a quality fit and finish.
- Extended housing with screw fastening for easy wall-mounted installation
- Designed, engineered and built in Germany.
- Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
Includes
Emergency Shutoff
- Emergency Button
- Luster Terminal Block
- 2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)
W/ Face Plate Kit
- Wooden Plate 80x80 mm
- Mounting Frame
- Hollow Wall Box
- 2 Screws 3x20 mm
- 2 Screws 2.9x9.5 mm
Specifications
|
Model |
EMERGENCY SHUTOFF |
|
Isolation Voltage |
250 V |
|
Max AC Current |
5 A |
|
Max DC Current |
2.5 A |
|
Max Ambient Temperature |
158°F (70°C) |
|
Protection Class |
IP65 (Visible Part up to the Mounting Point) |
|
Connection |
2 Contact Pairs (Crimped Wires) |
|
Installation Depth |
3.3" (8.5 cm) |
|
Width (Cover Plate) |
2.8" (7 cm) |
|
Depth (Cover Plate) |
0.5" (1.2 cm) |
|
Height (Cover Plate) |
2.8" (7 cm) |
