EOS Cubo Avantgarde 208/3 Sauna Heater
Authorized Dealer - Full Warranty Included
Freestanding powder-coated steel design
Scratch-resistant matte black finish
Stylish rock store extension
Uniform appearance on all sides for flexible placement options
Robust, durable and service-friendly construction
Designed, engineered and built in Germany
Compatible with Touch 3 & Emotec D controls (Sold Separately)
Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
No VAT or other hidden charges added at checkout.
Full Description
The EOS Cubo Avantgarde is a premium electric sauna heater that delivers exceptional performance in a luxurious, ultra-modern design.

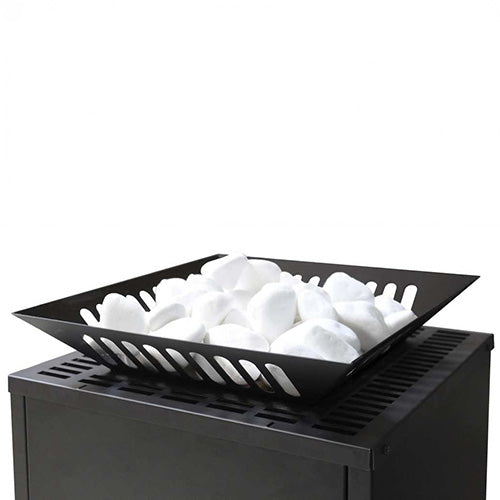

The matte black Cubo Avantgarde is constructed from durable powder-coated steel, which is scratch-resistant to protect its contemporary exterior. With its symetrical dimensions on all sides, the heater complements sauna rooms of any installation configuration. Its distinctive stylized upper stone basket is secured to the top of the heater and cradles decorative white quartz sauna stones for a dramatic visual impact. Layered above the internal diabase sauna stones, the added rocks improve heat retention and increase steam production when water is poured.
Featuring heating elements not directly contacting sauna stones and secure access to wiring connections, the Cubo Avantgarde is extremely efficient and service friendly. Boasting a large rock capacity relative to its compact footprint, the heater optimizes air convection for quick heat-up times, superior performance, and powerful sauna sessions.
Protected by a 2-year warranty, the Cubo Avantgarde offers an exceptional blend of precise craftsmanship and optimized performance to bring your sauna to life.
Features
- Freestanding powder-coated steel design with a scratch-resistant matte black finish.
- Stylish rock store extension with white quartz stones for more intense steam production.
- Uniform appearance on all sides for flexible placement options.
- Robust, durable and service-friendly construction.
- Designed, engineered and built in Germany.
- Compatible with Touch 3 & Emotec D controls (Sold Separately)
- Dimensions: 15.7"W (40 cm) x 15.2"D (38.5 cm) x 28.3"H (72 cm)
- Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
Includes
- Cubo Avantgarde Electric Sauna Heater
- Diabase Sauna Stones
- Rock Store Frame
- White Quartz Sauna Stones
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)
Specifications
|
Model |
14-947523 |
|
Room Size |
247-353 cu. ft. |
|
Wattage Rating |
7500 |
|
Amperage |
30 |
|
Model |
14-947524 |
|
Room Size |
314-494 cu. ft. |
|
Wattage Rating |
9000 |
|
Amperage |
35 |
|
Model |
14-947525 |
|
Room Size |
387-527 cu. ft. |
|
Wattage Rating |
15000 |
|
Amperage |
20 |
|
Model |
14-947526 |
|
Room Size |
494-634 cu. ft. |
|
Wattage Rating |
12000 |
|
Amperage |
25 |
|
Model |
CUBO AVANTGARDE 208/3 |
|
Room Size |
247-634 cu. ft. |
|
Circuit Breaker |
See Installation and Operation Manual |
|
Voltage |
208 |
|
Phase |
3 |
|
Safety Listing |
CSA (Canadian Standards Association) |
|
Wire Size AWG |
12 |
|
Minimum Ceiling Height |
74.8" (190 cm) |
|
Safety Distance (Front to Back) |
19.9" (50.5 cm) |
|
Safety Distance (Left to Right) |
20.5" (52 cm) |
|
Stone Capacity |
77 lbs (35 kg) |
|
Stone Size |
2" to 4" (5-10 cm) |
|
Width |
15.7" (40 cm) |
|
Depth |
15.2" (38.5 cm) |
|
Height |
28.3" (72 cm) |
|
Weight |
62 lbs (28 kg) |
Manuals
Engineered for Every Seating Level
Available across a range of kW outputs, the Cubo Avantgarde is calibrated to match your room size, delivering consistent, balanced warmth from floor to ceiling. Its heavy-duty stainless steel construction and black powder-coated finish are built to withstand years of high heat and humidity without compromising performance or looks.
German-Engineered Performance
The EOS Cubo Avantgarde is handcrafted in Germany, where precision engineering meets decades of sauna heating expertise. At its core is EOS's signature Three-Shelf Technology — a patented heat-channeling system that optimizes airflow and stone contact for rapid warm-up and even heat distribution across every seating level.
